Generator Removal/Installation [13B-MSP]
WARNING:
- Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
- When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.
- Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [13B-MSP] .)
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [13B-MSP] .)
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [13B-MSP] .)
- Remove the front suspension tower bar. (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION [MT] .) (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION [AT] .)
- Remove the air hose (air cleaner to throttle body.) (Refer to INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [13B-MSP] in appropriate Intake-Air System (13B-MSP) article .)
- Position the drive belt out of the way. (See DRIVE BELT REPLACEMENT [13B-MSP] .)

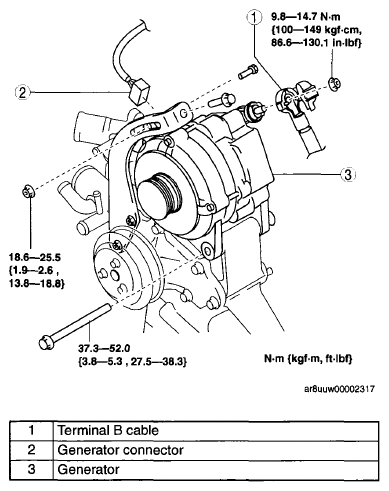

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
