Relay Location

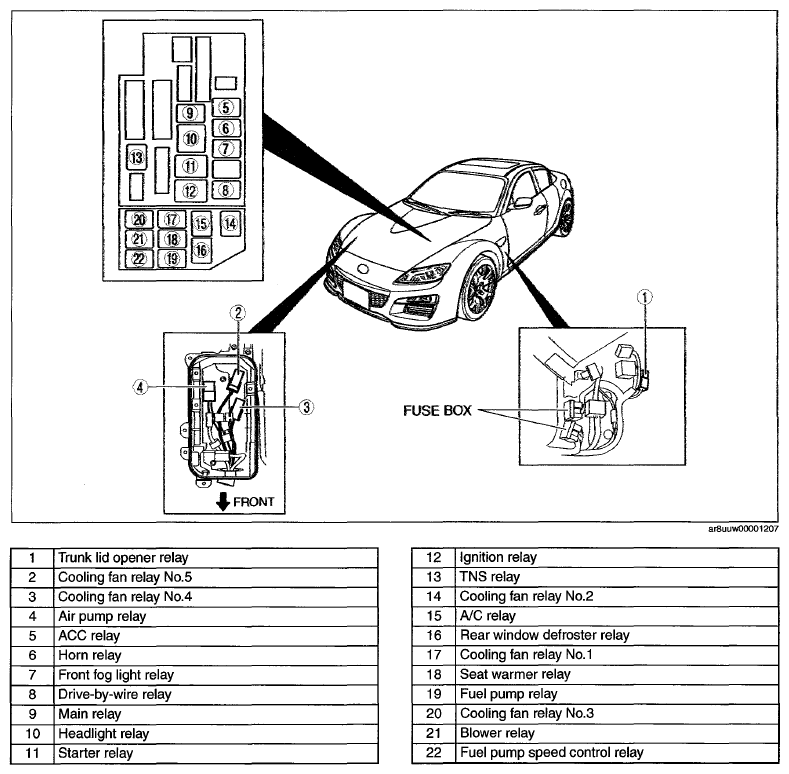

RELAY BOX AND FUSE BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Trunk Lid Opener Relay |
| Cooling Fan Relay No. 5 |
| Cooling Fan Relay No. 4 |
| Air Pump Relay |
| ACC Relay |
| Horn Relay |
| Front Fog Light Relay |
| Drive-By-Wire Relay |
| Main Relay |
| Headlight Relay |
| Starter Relay |
| Ignition Relay |
| TNS Relay |
| Cooling Fan Relay No. 2 |
| A/C Relay |
| Rear Window Defroster Relay |
| Cooling Fan Relay No. 1 |
| Seat Warmer Relay |
| Cooling Fan Relay No. 3 |
| Fuel Pump Relay |
| Blower Relay |
| Fuel Pump Speed Control Relay |
