Quick Diagnostic Chart Exterior Open/Close Function

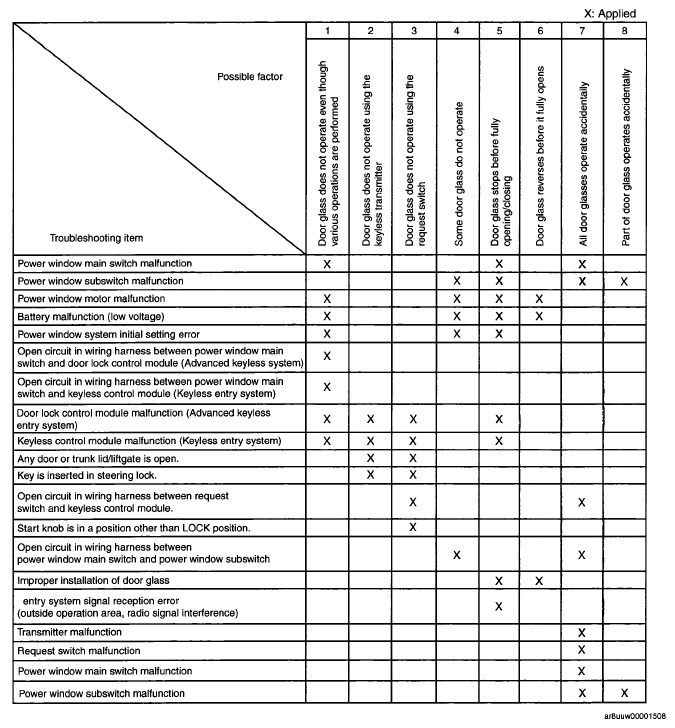

Fig 1: Quick Diagnostic Chart

Courtesy of ABLE BODY CORP.

NOTE:

• The exterior open/close function does not operate when the following conditions are met.
  • Any door or trunk lid is open.
  • The key is inserted in the steering lock.
  • The start knob is not in the LOCK position.
• The auto-open/close function (the exterior open/close function) does not operate if the power window initialization procedure has been reset.
• Depending on the temperature and battery conditions, the window may reverse on rare occasions.
