Front Inner Handle Removal/Installation

1. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Remove the screws, then remove the front inner handle.
4. Detach the cables from the front inner handle and door lock knob.
5. Install in the reverse order of removal.

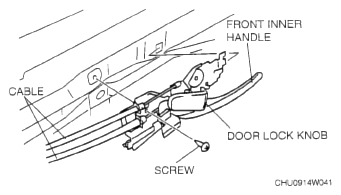

Fig 1: Identifying Front Inner Handle Components

Courtesy of MAZDA MOTORS CORP.
