Transfer Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Middle pipe (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZI-3.7] .)
    2. Front pipe (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZI-3.7] .)
    3. Stabilizer control link (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
    4. Tie-rod end ball joint (right side) (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
    5. Front lower arm ball joint (right side) (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
    6. Front drive shaft (right side) (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
    7. Joint shaft (See JOINT SHAFT REMOVAL/INSTALLATION [AWD] .)
  3. Disconnect the propeller shaft from the transfer side. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table in the figure.
  5. Install in the reverse order of removal.
  6. Warm up the engine and transaxle, inspect for oil leakage, and inspect the transfer operation.

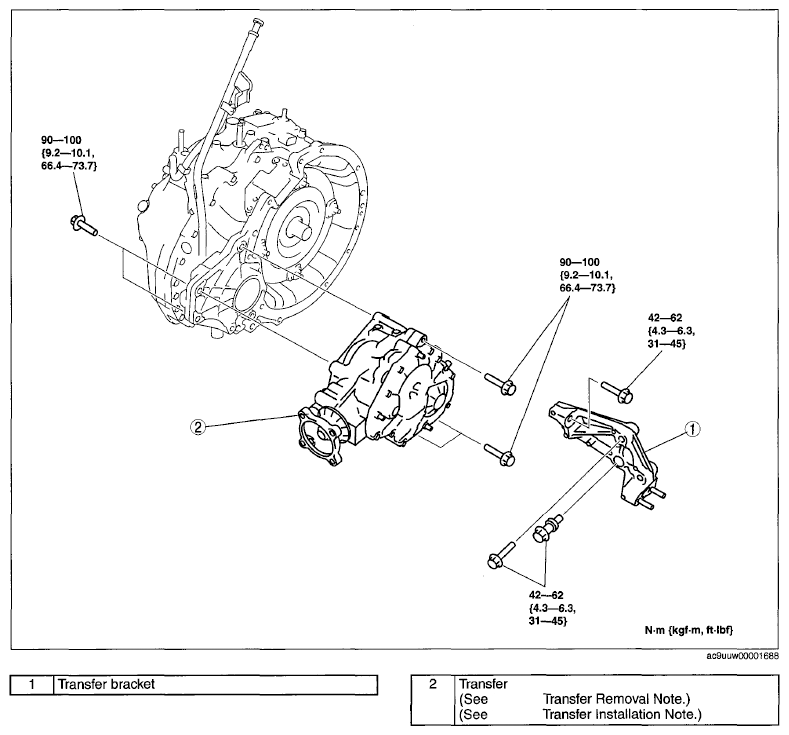

    Fig 1: Exploded View Of Transfer And Transfer Bracket With Torque Specifications
    G06730052Courtesy of MAZDA MOTORS CORP.
