Connector Removal Note

  1. Using a flathead screwdriver, lift the locking device carefully, however do not remove it.
  2. Disconnect the connector.

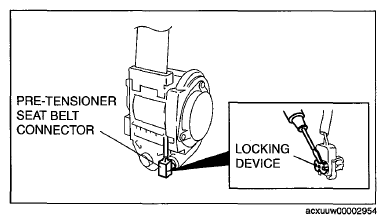

    Fig 1: Removing Locking Device Using Flathead Screwdriver
    G06725991Courtesy of MAZDA MOTORS CORP.
