Ignition Coil Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the charge air cooler. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the illustration.
  4. Install in the reverse order of removal.

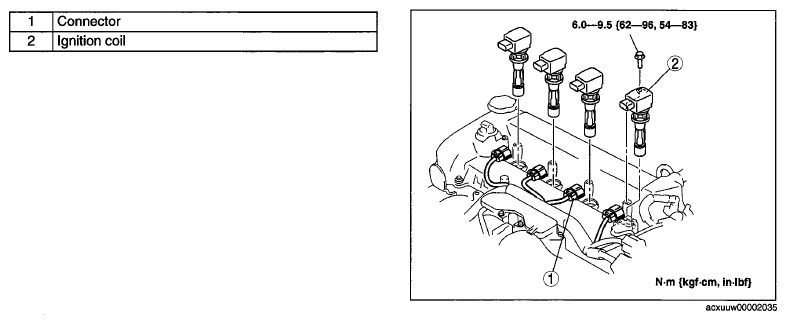

    Fig 1: Ignition Coils With Torque Specifications
    G06724731Courtesy of MAZDA MOTORS CORP.
