Generator Removal/Installation [L5]: Notes

WARNING:
  • Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
  • When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.
CAUTION:
  • The generator can be damaged by the heat from the exhaust manifold. Make sure the generator duct is installed securely.
  1. Disconnect the negative battery cable.
  2. Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [L5] .)
  3. Remove the under cover.
  4. Remove the exhaust manifold insulator (upper). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [L5] .)
  5. Remove in the order indicated in the table in the illustration.
  6. Install in the reverse order of removal.

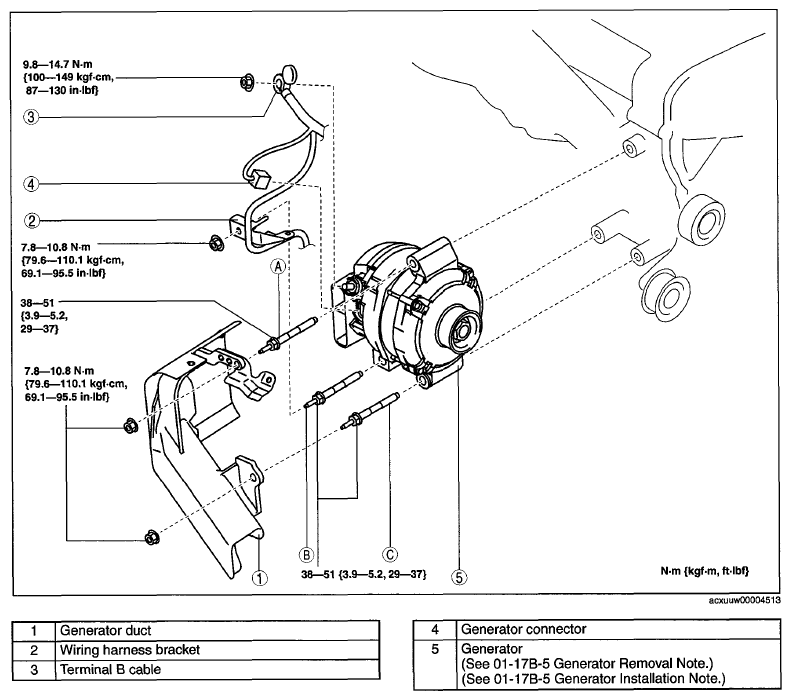

    Fig 1: Exploded View Of Generator Components With Torque Specification
    G06727045Courtesy of MAZDA MOTORS CORP.
