Generator Removal Note

  1. Remove the generator from above the engine compartment.

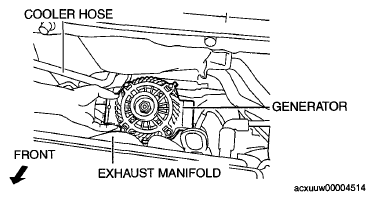

    Fig 1: Locating Generator And Cooler Hose With Exhaust Manifold
    G06727046Courtesy of MAZDA MOTORS CORP.
