Clearance Inspection
- Remove the rear ABS wheel-speed sensor.

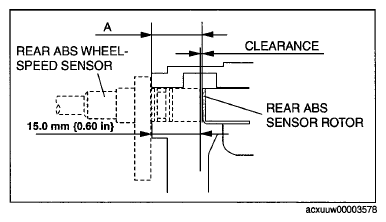

- Measure the distance between the rear ABS wheel-speed sensor installation surface and the rear ABS sensor rotor. This is dimension A.
- Calculate the clearance between the rear ABS wheel-speed sensor and the rear ABS sensor rotor using the following formula: Clearance (mm {in}) = A-15.0
- Verify that the clearance between the rear ABS sensor rotor and the rear ABS wheel-speed sensor is as indicated below.
- If there is any malfunction, replace it.
Clearance
- 0.3-1.1 mm {0.012-0.043 in}
