Auto-dimming Mirror

  1. Install the rearview mirror.
  2. Install the screw.
  3. Connect the auto-dimming mirror connector.
  4. Install the cover.

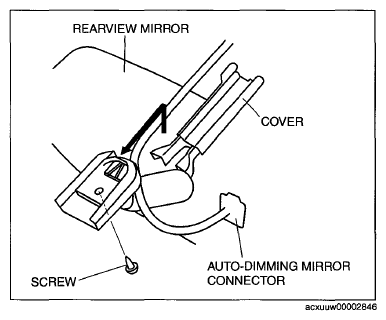

    Fig 1: Connecting Auto-Dimming Mirror Connector
    G06726171Courtesy of MAZDA MOTORS CORP.
