Rear Power Window Motor

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION .)
    2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the rear power window motor connector.
  4. Apply battery positive voltage and connect the ground to rear power window motor terminals E and F, and then inspect the rear power window motor operation.
    • If the power window motor does not operate as indicated in the table in the illustration, replace it.
      CAUTION:
      • If the power window motor temperature is high, the motor may not rotate due to the motor internal bimetal function. Leave it untouched for about 3 min to cool it down, then reinspect.
      TERMINAL REFERENCE CHART

      Operation Terminal
      F E
      Open B+ Ground
      Close Ground B+

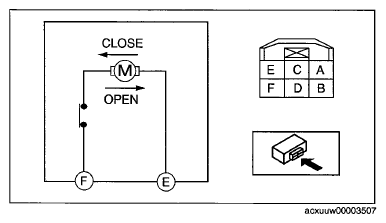

      Fig 1: Rear Power Window Motor Circuit Diagram
      G06726099Courtesy of MAZDA MOTORS CORP.
