Clip Disassembly Note

  1. Lift up the clip tab using a flathead screwdriver.
  2. Remove the clip pushing with a flathead screwdriver and a hammer as shown in the illustration.

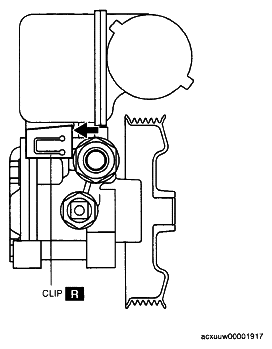

Fig 1: Removing Clip
G04860542Courtesy of MAZDA MOTORS CORP.
