Rear Buckle Removal/Installation

  1. Remove the rear seat cushion. (See REAR SEAT REMOVAL/INSTALLATION .)
  2. Remove in the order as indicated below.
  3. Install in the reverse order of removal.

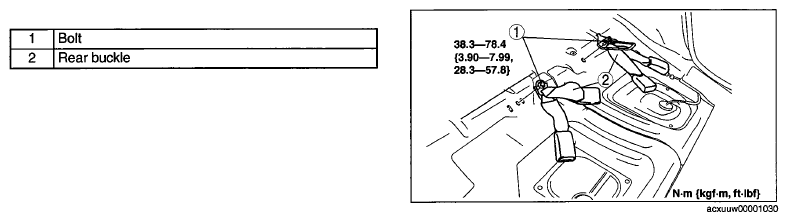

    Fig 1: Locating Rear Buckle Components With Torque Specifications
    G06725999Courtesy of MAZDA MOTORS CORP.
