Body Control Module (BCM) Connector End View

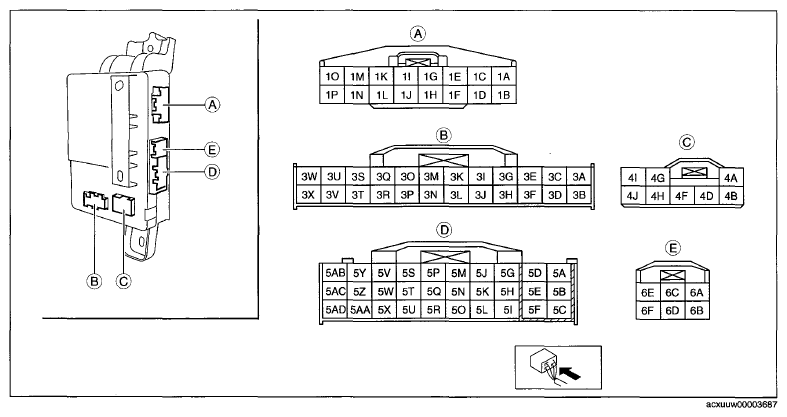

Fig 1: Body Control Module (BCM) Connector End View
G06726705Courtesy of MAZDA MOTORS CORP.

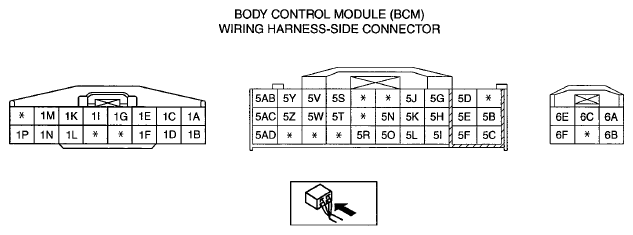

Fig 1: Body Control Module (BCM) Connector End View
G06726548Courtesy of MAZDA MOTORS CORP.
