Manifold Absolute Pressure (Map) Sensor Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable.
  2. Disconnect the MAP sensor connector.
  3. Remove the MAP sensor.
  4. Install in the reverse order of removal.

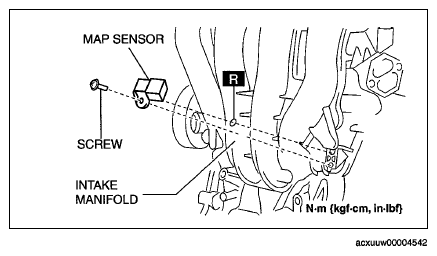

    Fig 1: Locating MAP Sensor And Screw
    G06724908Courtesy of MAZDA MOTORS CORP.
