Control System Component Location Index

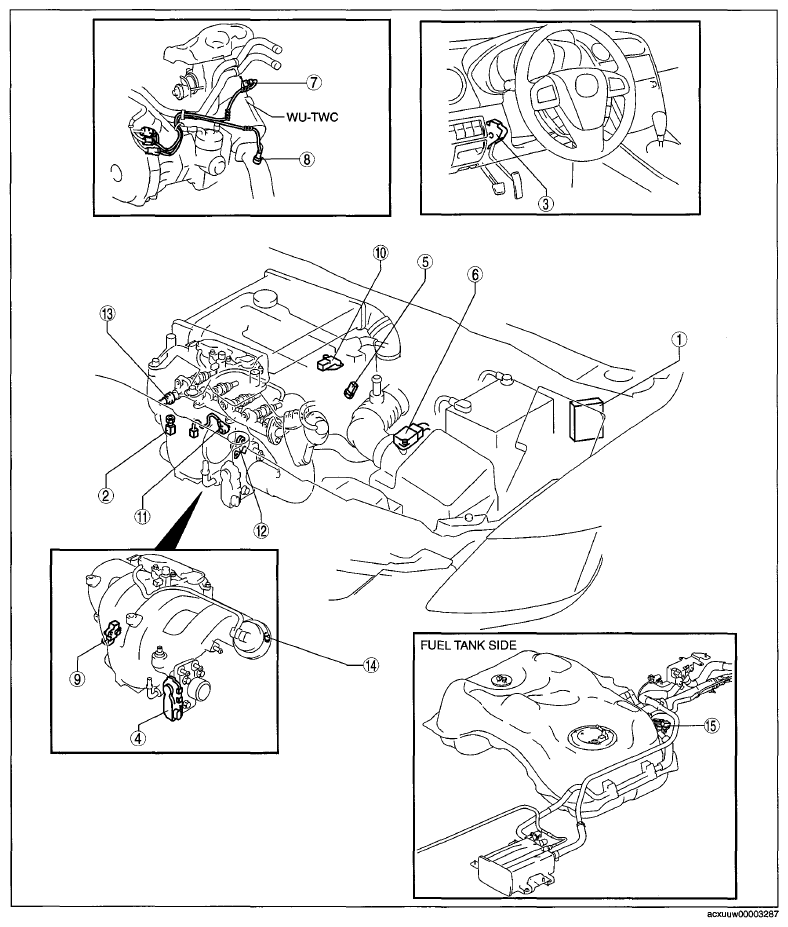

Fig 1: Control System Components Location (L3 With TC)

G06724789

Courtesy of MAZDA MOTORS CORP.

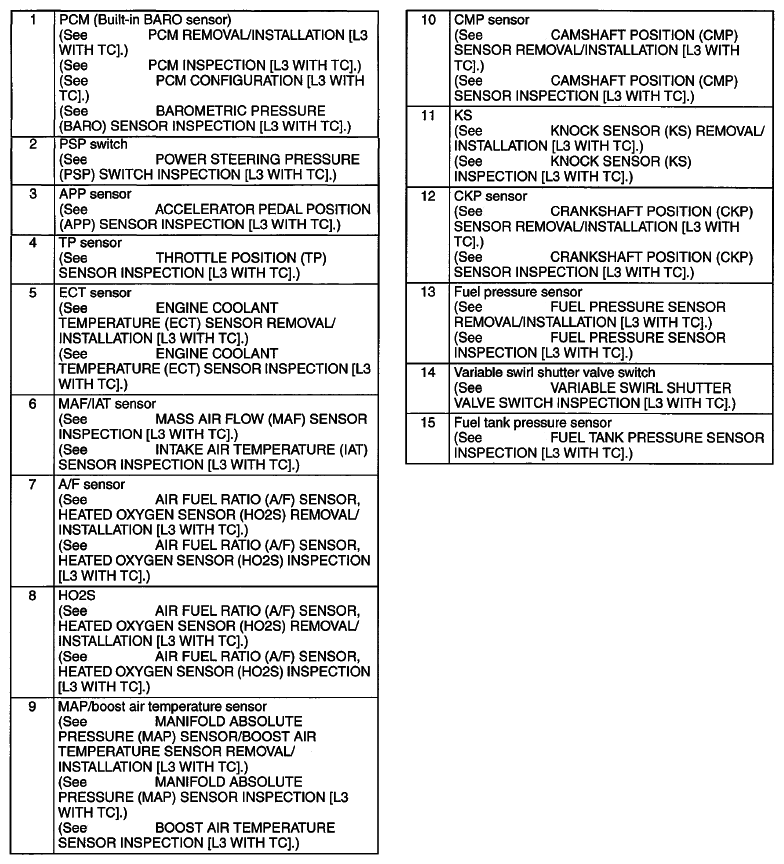

Fig 2: Control System Legends

G06724790

Courtesy of MAZDA MOTORS CORP.
