Rear Power Window Motor

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION .)
    2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  3. Remove the bolts.

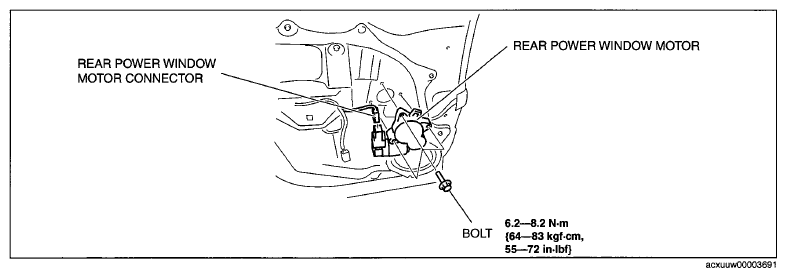

    Fig 1: Locating Rear Power Window Motor Bolts With Torque Specifications
    G06726097Courtesy of MAZDA MOTORS CORP.
  4. Remove the rear power window motor from the power window regulator.
  5. Disconnect the rear power window motor connector.
  6. Install in the reverse order of removal.
    NOTE:
    • When installing the rear power window motor to the rear power window regulator drum, the drum housing hooks may detach from the door module. If this happens, remove the door speaker, insert your hand in the speaker installation hole, connect the drum housing hooks, and while supporting the drum housing, install the rear power window motor to the drum.
