Power Outer Mirror Inspection

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION )
  5. Apply battery positive voltage to the power outer mirror terminals and inspect the operation of the power outer mirror.

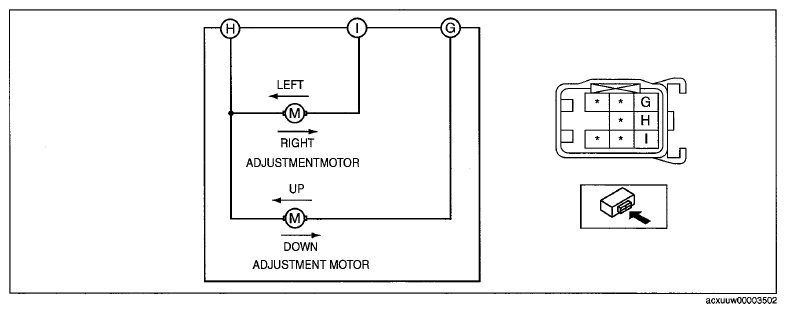

    Fig 1: Power Outer Mirror Circuit Diagram
    G06726155Courtesy of MAZDA MOTORS CORP.
    • If not as specified, replace the power outer mirror.
    TERMINAL REFERENCE CHART

    Mirror operation terminal
    B+ GND
    Up G H
    Down H G
    Left I H
    Right H I
  6. Inspect for continuity between the power outer mirror heater terminals.
    • If not as specified, replace the power outer mirror.

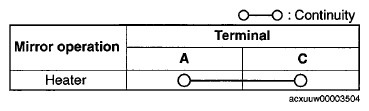

      Fig 2: Power Outer Mirror Heater Terminals Continuity Chart
      G06726156Courtesy of MAZDA MOTORS CORP.

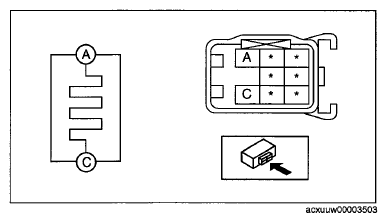

      Fig 3: Inspecting Continuity Between Power Outer Mirror Heater Terminals
      G06726157Courtesy of MAZDA MOTORS CORP.
