Outer Mirror Glass Removal

Disconnect the negative battery cable.
Press area A of the mirror glass so that area B moves outward.

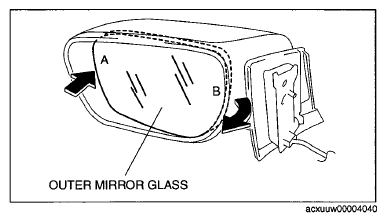

Fig 1: View Of Outer Mirror Glass Area
Courtesy of MAZDA MOTORS CORP.
Detach pin A while lifting up the inside of the mirror glass holder.
Pull the mirror glass holder and remove pins B.

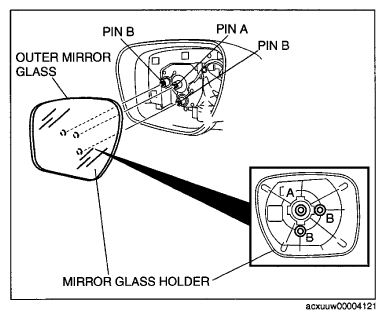

Fig 2: Locating Outer Mirror Glass, Mirror Glass Holder And Pins
Courtesy of MAZDA MOTORS CORP.
Disconnect the heated outer mirror connectors. (vehicles with heated outer mirrors)

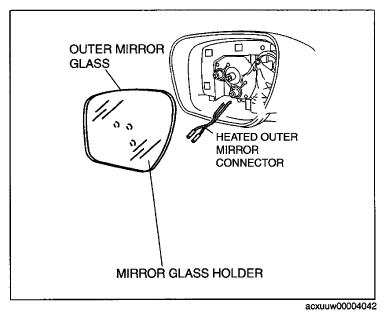

Fig 3: Locating Heated Outer Mirror Connectors
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver to the position shown in the figure, remove the connector. (Vehicles with BSM)
CAUTION:
- The connector can be easily deformed, therefore do not apply excessive force.

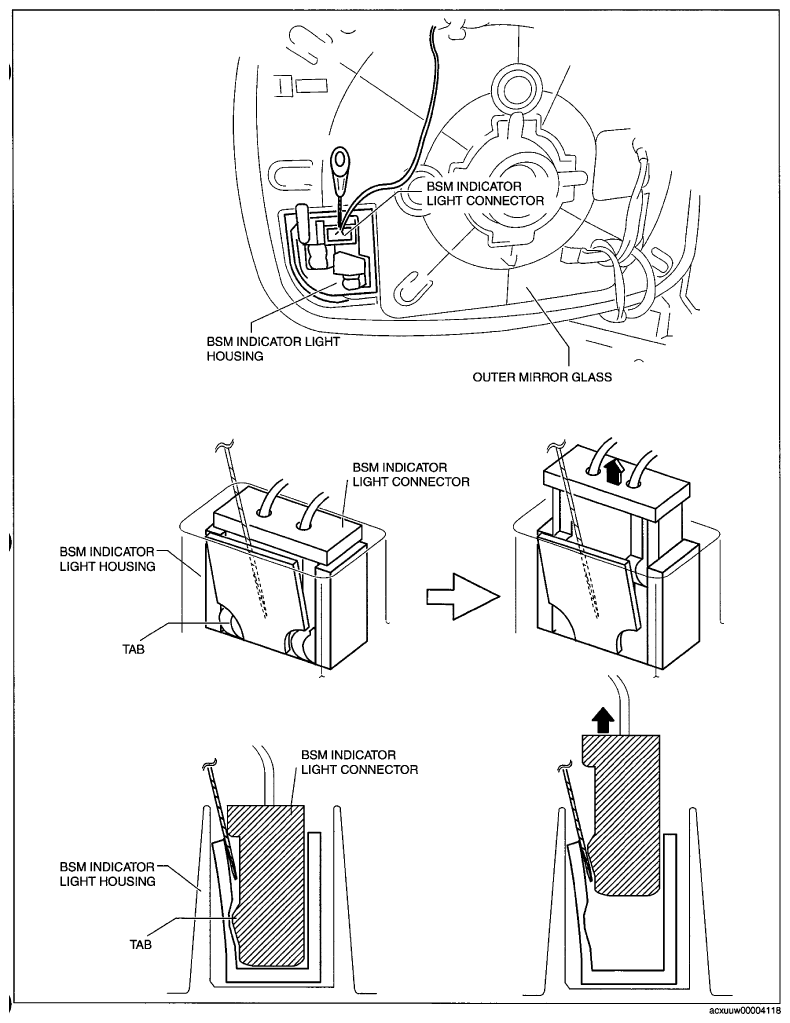

Fig 4: Removing BSM Indicator Light Connector
Courtesy of MAZDA MOTORS CORP.
Remove the mirror glass holder and the outer mirror glass as a single unit.
