Outer Mirror Glass Installation

Connect the heated outer mirror connectors. (Vehicles with heated outer mirrors)
Connect the BSM indicator light connector. (Vehicles with BSM)
NOTE:
- Lightly pull the BSM indicator light connector and verify that the BSM indicator light housing cannot be pulled off. If the connection is poor, insert a tape-wrapped flathead screwdriver into position A shown in the figure and engage the connector.

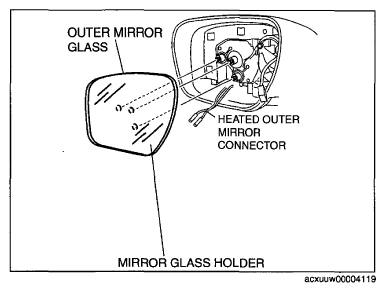

Fig 1: View Of Heated Outer Mirror Connectors And Mirror Glass Holder
Courtesy of MAZDA MOTORS CORP.

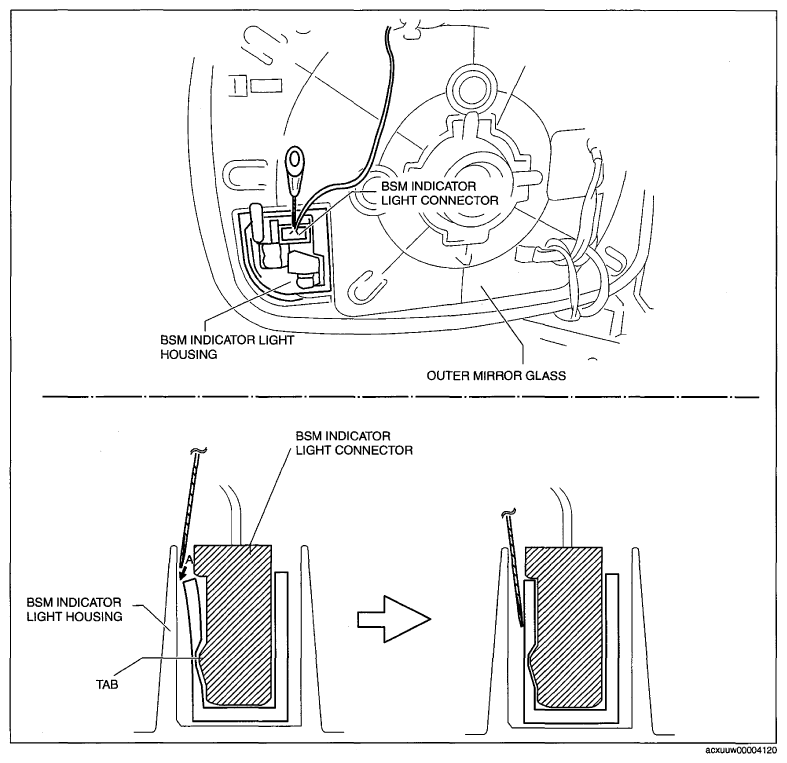

Fig 2: Pulling BSM Indicator Light Connector And BSM Indicator Light Housing
Courtesy of MAZDA MOTORS CORP.
Press part A on the outer mirror glass and install pin A.
Press part B on the outer mirror glass and install pins B.

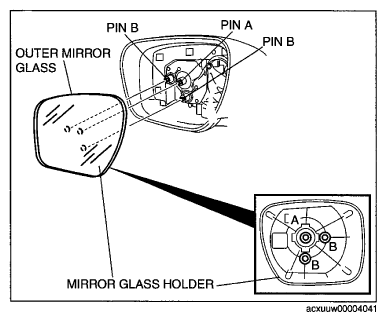

Fig 3: Locating Outer Mirror Glass And Pins
Courtesy of MAZDA MOTORS CORP.
