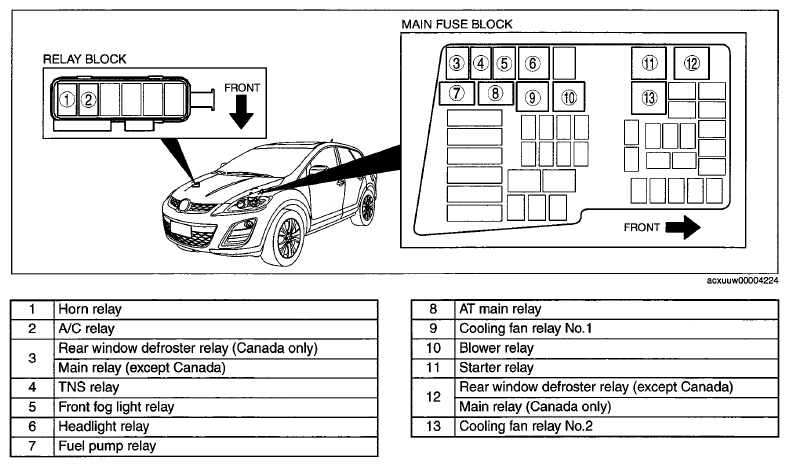

Relay Location [L5]
Courtesy of MAZDA MOTORS CORP. ENGINE ROOM FUSE/RELAY BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
| Horn Relay |
| A/C Relay |
| Rear Window Defroster Relay |
| Main Relay |
| TNS Relay |
| Front Fog Light Relay |
| Headlight Relay |
| Fuel Pump Relay |
| AT Main Relay |
| Cooling Fan Relay No. 1 |
| Blower Relay |
| Starter Relay |
| Cooling Fan Relay No. 2 |
