Relay Location [L3 With TC]

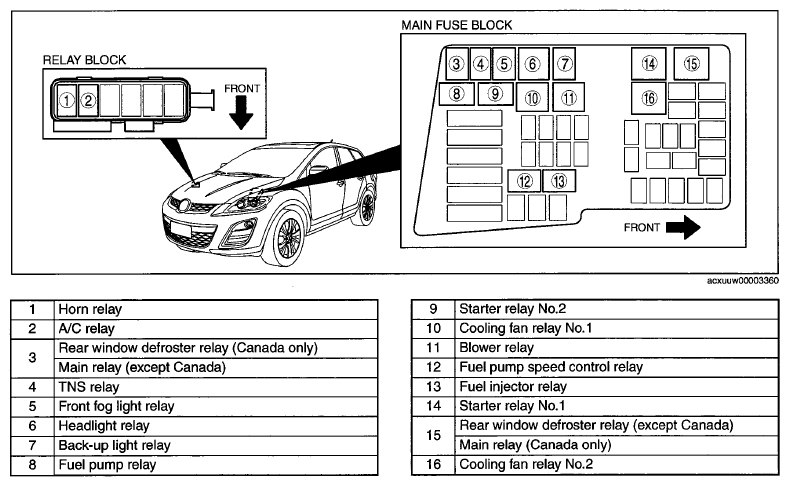

Fig 1: Identifying Engine Room Fuse/Relay Block Relay Location [L3 With TC]

Courtesy of MAZDA MOTORS CORP.

ENGINE ROOM FUSE/RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Horn Relay
A/C Relay
Rear Window Defroster Relay
Main Relay
TNS Relay
Front Fog Light Relay
Headlight Relay
Back-Up Light Relay
Fuel Pump Relay
Starter Relay No. 2
Cooling Fan Relay No. 1
Blower Relay
Fuel Pump Speed Control Relay
Fuel Injector Relay
Starter Relay No. 1
Cooling Fan Relay No. 2
