No. 3 Advanced Keyless Entry Function Inoperative [Advanced Keyless Entry And Start System]: Notes

POSSIBLE CAUSE - NO. 3 ADVANCED KEYLESS ENTRY FUNCTION INOPERATIVE (ADVANCED KEYLESS ENTRY AND START SYSTEM)

3 Advanced keyless entry function inoperative
POSSIBLE CAUSE
  • Malfunction in the transmitter (advanced key)
  • Malfunction in the keyless control module
  • Malfunction in the keyless receiver
  • Malfunction in the keyless antenna
  • Malfunction in the BCM
  • Wrong usage

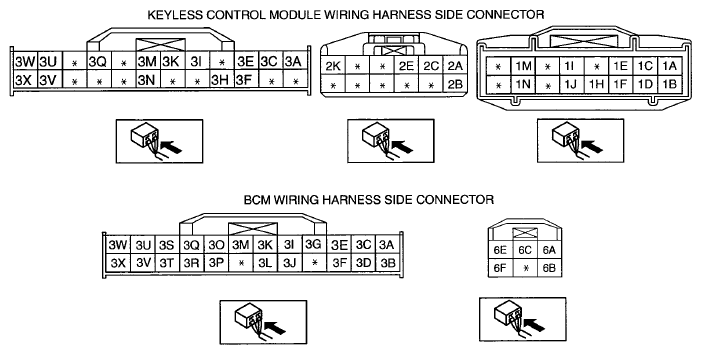

G06726568Courtesy of MAZDA MOTORS CORP.
