Liftgate Outer Handle Removal/Installation

  1. Remove the rear finisher. (See REAR FINISHER REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table in the illustration.

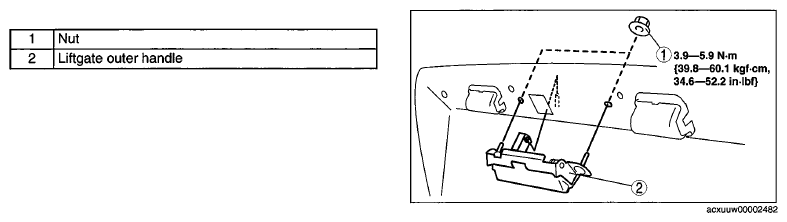

    Fig 1: Locating Liftgate Outer Handle Nut With Torque Specifications
    G06726203Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
