Interior, Middle

  1. Disconnect the negative battery cable.
  2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
  3. Remove the screws.
  4. Disconnect the connector, then remove the keyless antenna.
  5. Install in the reverse order of removal.

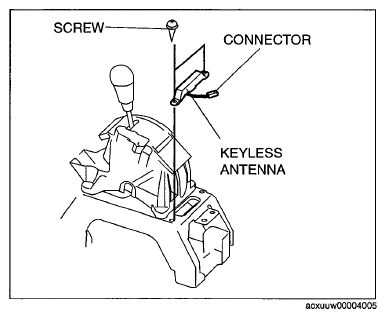

    Fig 1: Locating Keyless Antenna Connector And Screws
    G06726249Courtesy of MAZDA MOTORS CORP.
