Hood Latch And Release Lever Removal/Installation: Notes

  1. To remove the hood release cable, remove the following parts:
  2. Remove in the order indicated in the table in the illustration.
  3. Install in the reverse order of removal.
  4. Adjust the hood. (See HOOD ADJUSTMENT .)

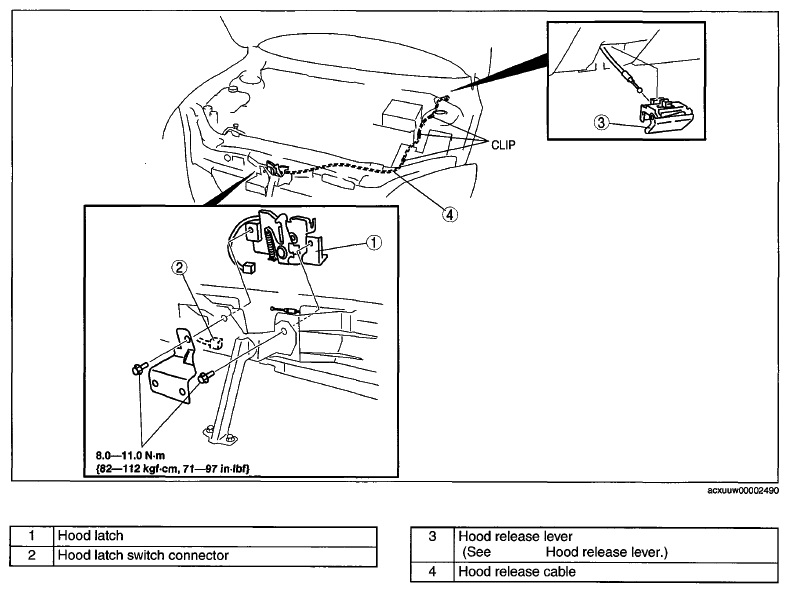

    Fig 1: Locating Hood Latch And Release Lever Components With Torque Specifications
    G06726184Courtesy of MAZDA MOTORS CORP.
