DTC Inspection [Advanced Keyless Entry And Start System]

Connect the M-MDS to the DLC-2.
After the vehicle is identified, select the following items from the initialization screen of the M-MDS.
- When using the IDS (laptop PC)
  1. Select "Self Test".
  2. Select "Modules".
  3. Select "RKE".
- When using the PDS (Pocket PC)
  1. Select "Module Tests".
  2. Select "RKE".
  3. Select "Self Test".

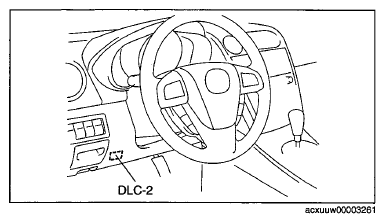

    Fig 1: Locating Data Link Connector (DLC-2)
    Courtesy of MAZDA MOTORS CORP.
Verify the DTC according to the directions on the screen.
- If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection.
After completion of repairs, clear all DTCs stored in the keyless control module. (See DTC TABLE [ADVANCED KEYLESS ENTRY AND START SYSTEM] .)
