Selector Cable Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the aerodynamic under cover NO. 2. (FS5A-EL) (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
  3. Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION .)
  4. Remove the dashboard. (See DASHBOARD REMOVAL/INSTALLATION .)
  5. Remove the A/C unit. (See A/C UNIT REMOVAL/INSTALLATION .)
  6. Remove the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION .)
  7. Remove in the order Indicated in the table.
  8. Install in the reverse order of removal.
  9. Adjust the selector cable after having installed. (See SELECTOR CABLE ADJUSTMENT .)

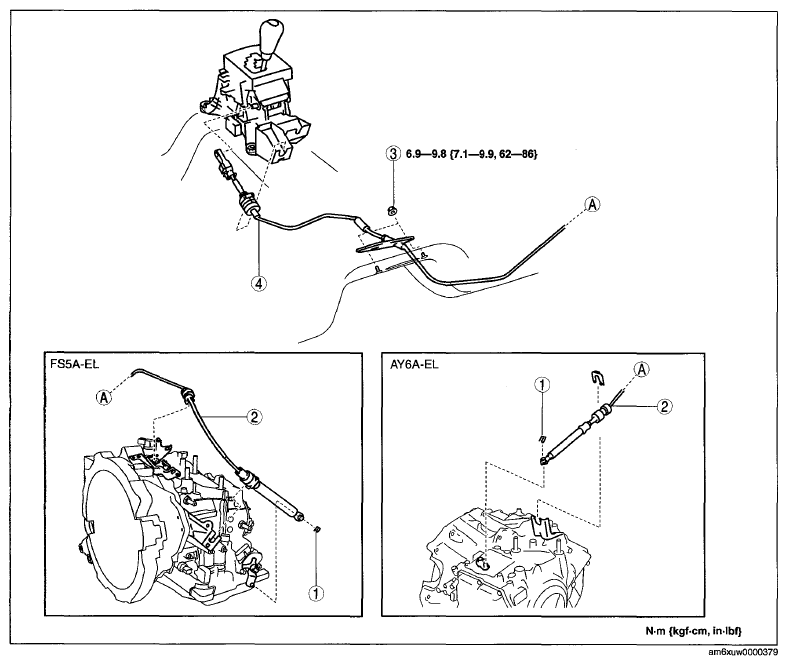

    Fig 1: Selector Cable, Clip And Nut
    G07626451Courtesy of MAZDA MOTORS CORP.
    SELECTOR CABLE AND CLIP REFERENCE CHART

    1 Clip
    2 Selector cable (transaxle side)
    3 Nut
    4 Selector cable (selector lever side)
