Steering Gear And Linkage Disassembly: Notes

1. Disassemble in the order indicated in the illustration.

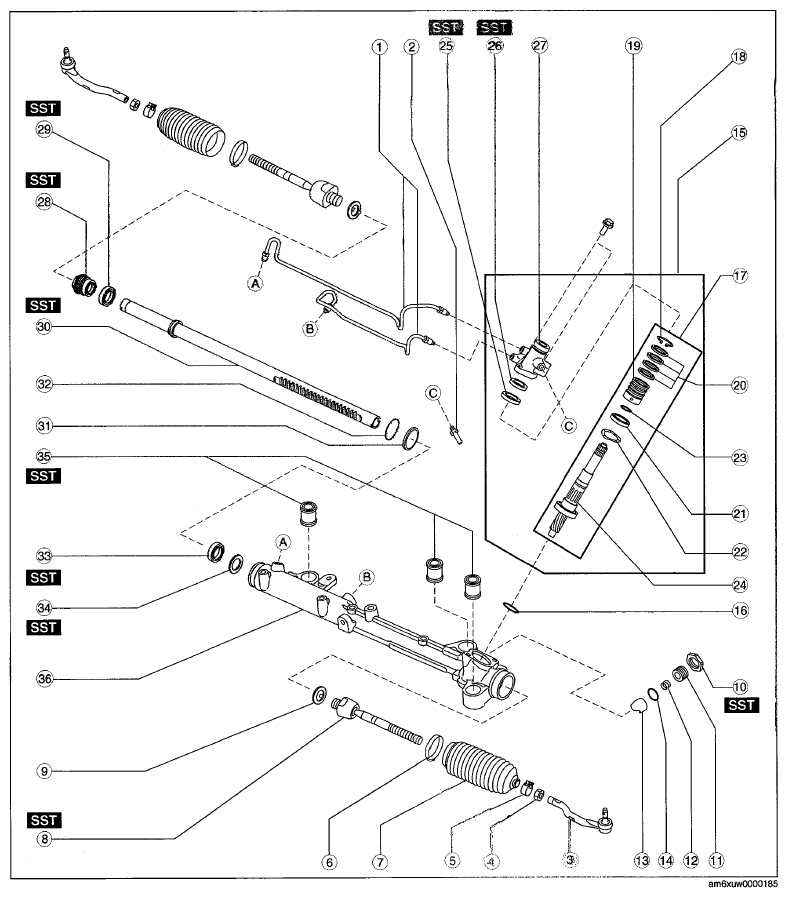

   Fig 1: Exploded View Of Steering Gear And Linkage

   Courtesy of MAZDA MOTORS CORP.
   PARTS DESCRIPTION CHART



   1	Oil pipe
   2	Return pipe
   3	Tie-rod end (See TIE-ROD END DISASSEMBLY NOTE .)
   4	Locknut
   5	Boot clasp
   6	Boot band
   7	Boot
   8	Tie rod (See TIE ROD, TIE-ROD LOCK WASHER DISASSEMBLY NOTE .)
   9	Tie-rod lock washer (See TIE ROD, TIE-ROD LOCK WASHER DISASSEMBLY NOTE .)
   10	Locknut (adjusting cover) (See LOCKNUT (ADJUSTING COVER), ADJUSTING COVER DISASSEMBLY NOTE .)
   11	Adjusting cover (See LOCKNUT (ADJUSTING COVER), ADJUSTING COVER DISASSEMBLY NOTE .)
   12	Yoke spring
   13	Support yoke
   14	O-ring
   15	Valve housing component
   16	O-ring
   17	Pinion shaft component (See PINION SHAFT COMPONENT DISASSEMBLY NOTE .)
   18	Clip
   19	Sleeve
   20	Seal ring (See SEAL RING DISASSEMBLY NOTE .)
   21	Oil seal
   22	Wave washer
   23	O-ring
   24	Pinion shaft
   25	Bush (See BUSH, OIL SEAL DISASSEMBLY NOTE .)
   26	Oil seal (See BUSH, OIL SEAL DISASSEMBLY NOTE .)
   27	Valve housing
   28	Cylinder end (See CYLINDER END DISASSEMBLY NOTE .)
   29	Oil seal (cylinder end side) (See OIL SEAL (CYLINDER END SIDE), STEERING RACK DISASSEMBLY NOTE .)
   30	Steering rack (See OIL SEAL (CYLINDER END SIDE), STEERING RACK DISASSEMBLY NOTE .)
   31	Seal ring (See SEAL RING, O-RING DISASSEMBLY NOTE .)
   32	O-ring (See SEAL RING, O-RING DISASSEMBLY NOTE .)
   33	Oil seal (pinion shaft side) (See OIL SEAL (PINION SHAFT SIDE), BACK-UP CYLINDER RING DISASSEMBLY NOTE .)
   34	Back-up cylinder ring (See OIL SEAL (PINION SHAFT SIDE), BACK-UP CYLINDER RING DISASSEMBLY NOTE .)
   35	Mounting rubber (See MOUNTING RUBBER DISASSEMBLY NOTE .)
   36	Gear housing
