Mounting Rubber Assembly Note
- Apply soapy water to the rubber part of the mounting rubber.

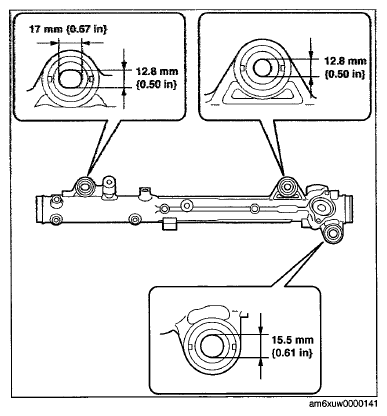

- Temporarily install the gear housing so that the mounting rubber is positioned as shown in the illustration.CAUTION:
- If the mounting rubber is assembled in the incorrect position and direction, it could result in a mis-installation when it is installed to the vehicle. When assembling the mounting rubber, assemble while verifying the position and direction.
- Press fit the ear portion of the mounting rubber (lower side) using the SSTs
until it projects from the gear housing as shown in the illustration.NOTE:
- Press fit the ear portion of the mounting rubber (upper side) until it partially enters the gear housing.
Substitution SST
- 49 B032 317
Outer diameter: 20-24.5 mm {0.79-0.96 in}
Height: 40 mm {1.6 in} or more
- 49 V001 525
Inner diameter: 34 mm {1.3 in} or more
Outer diameter: 36-39 mm {1.42-1.53 in}
Plate thickness: 1 mm {0.04 in} or more
Height: 40 mm {1.6 in} or more
- Reverse the gear housing as shown in the illustration, and set the gear housing and the SSTs
into the press.
Substitution SST
- 49 B032 317
Outer diameter: 20-24.5 mm {0.79-0.96 in}
Height: 40 mm {1.6 in} or more
- 49 S231 506
Inner diameter: 34 mm {1.3 in} or more
Outer diameter: 36-38 mm {1.42-1.49 in}
Plate thickness: 1-2 mm {0.04-0.07 in} or more
Height: 20 mm {0.79 in} or more
- 49 B032 317
- Press fit the mounting rubber using the SSTs and the press until the mounting rubber ear portion (upper side) contacts the gear housing.
- Verify that both mounting rubber ears are correctly assembled with no gaps between them and the gear housing as shown in the illustration.
- If there are gaps, readjust their positions using the SSTs and the press.
