Power Outer Mirror Switch Inspection

1. Switch the ignition ON.
2. Verify that the power outer mirror switch can be operated for approx. 43 s  after the ignition is switched off.
   • If the power outer mirror cannot be operated for approx. 43 s  after the ignition is switched off, or if the power outer mirror can still be operated after approx. 43 s  , replace the power outer mirror switch.
3. Disconnect the negative battery cable.
4. Remove the inner garnish, (driver-side) (See INNER GARNISH REMOVAL/INSTALLATION .)
5. Remove the front door trim, (driver-side) (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
6. Remove the switch panel, (driver-side) (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY .)
7. Using a tester, verify that the continuity between the power outer mirror switch terminals is as indicated in the table.

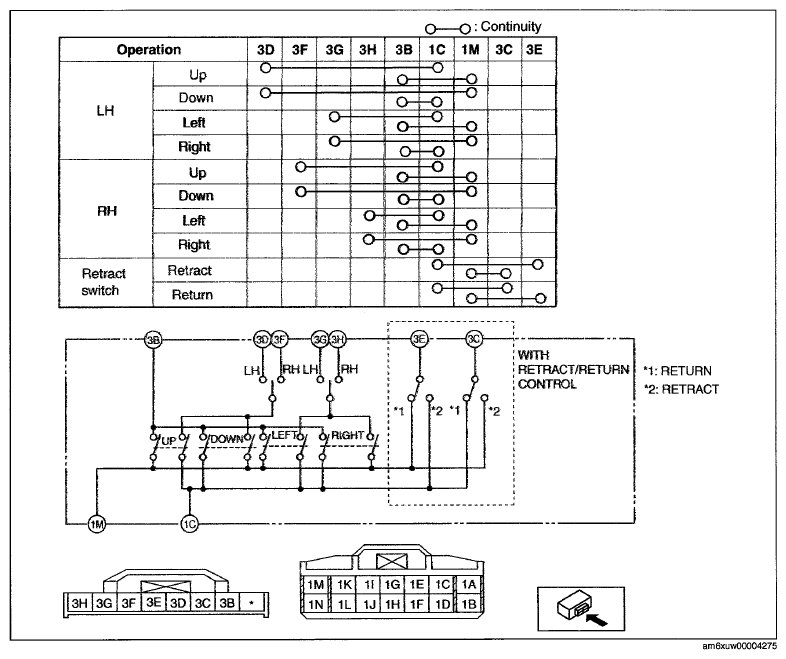

Fig 1: Power Outer Mirror Switch Terminals Continuity Chart

Courtesy of MAZDA MOTORS CORP.

• If not as indicated in the table, replace the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .)
