Outer Mirror Glass Installation

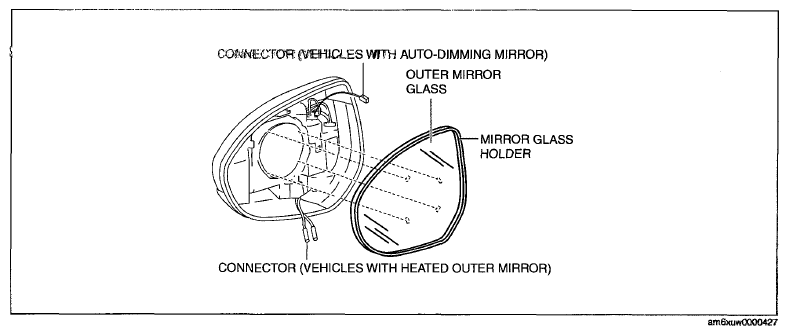

- Connect the mirror heater connectors, (vehicles with heated outer mirror)
- Connect the auto-dimming mirror connectors. (vehicles with auto-dimming mirror)
Courtesy of MAZDA MOTORS CORP.

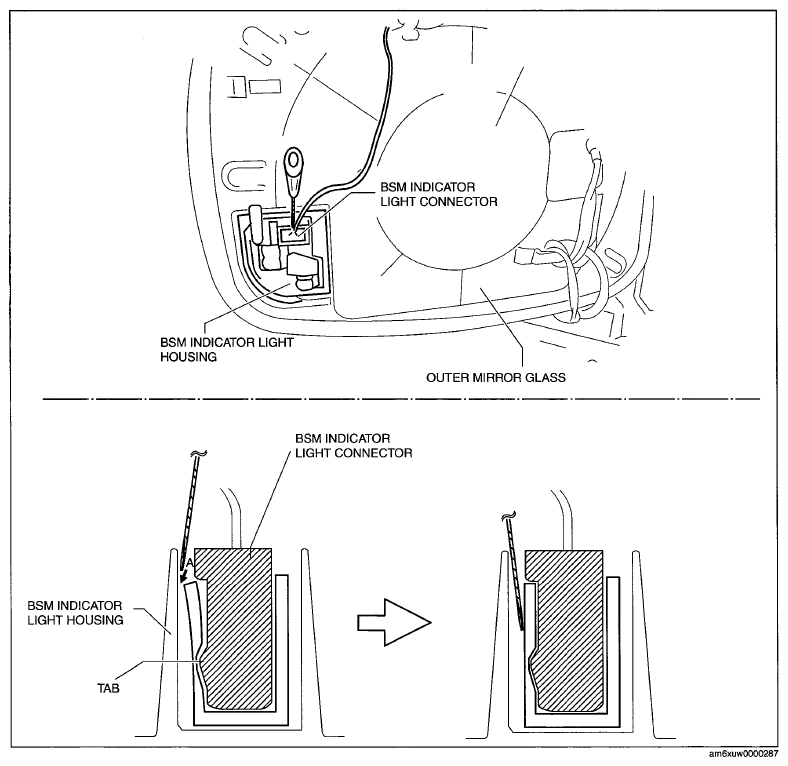

- Connect the BSM indicator light connector, (vehicles with BSM)
NOTE:
- Lightly pull the BSM indicator light connector and verify that the BSM indicator light housing cannot be pulled off. If the connection is poor, insert a tape-wrapped flathead screwdriver into position A shown in the illustration and engage the connector.
Courtesy of MAZDA MOTORS CORP.

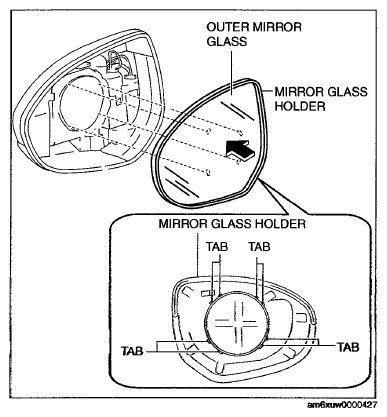

- Press the mirror glass holder in the direction of the arrow as shown in the illustration and install it.
Courtesy of MAZDA MOTORS CORP.
