Hood Latch Switch Inspection

Disconnect the negative battery cable.
Remove the hood latch. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
Press the latch in using a flathead screwdriver to inspect the fetch fever condition.

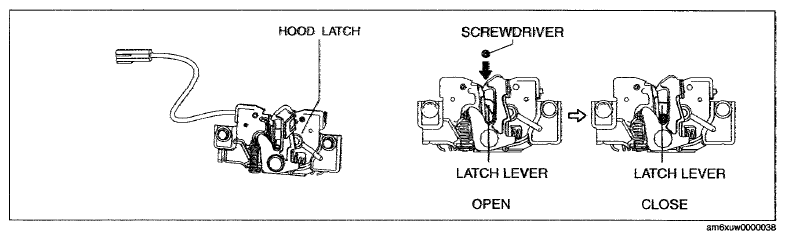

Fig 1: Pressing Latch Using Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Verify that the continuity is as indicated in the table.

Fig 2: Hood Latch Terminal Continuity Reference Chart

Courtesy of MAZDA MOTORS CORP.

Fig 3: Hood Latch Connector Terminal

Courtesy of MAZDA MOTORS CORP.
