Condenser Removal/Installation

Disconnect the negative battery cable.
Remove the following parts:
1. High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .)
2. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
3. Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .)
4. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
5. Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

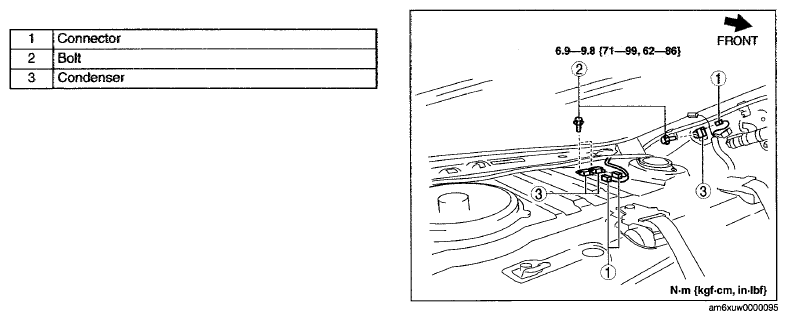

Fig 1: Condenser, Connector And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
