Relay Block And BSM Control Module Connector End View

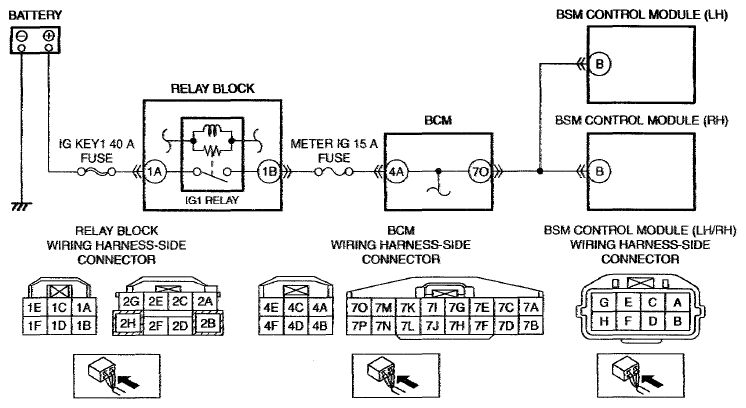

Fig 1: Relay Block And BSM Control Module Connector End View

G07626776

Courtesy of MAZDA MOTORS CORP.
