Turn Switch

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

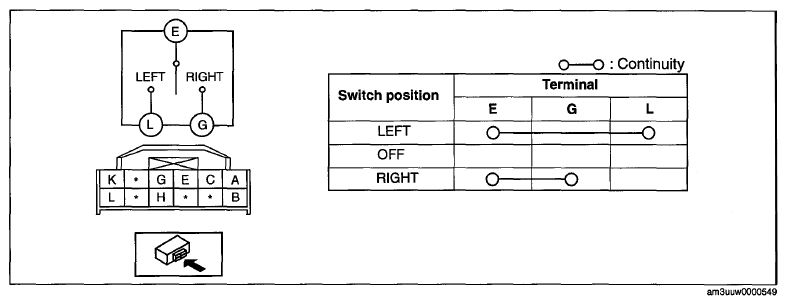

Fig 1: Turn Switch Terminal Continuity Chart
G06732195Courtesy of MAZDA MOTORS CORP.
