Front Fog Light Switch Inspection

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)
  4. Verify that the continuity between the front fog light switch terminals is as indicated in the table in illustration using a circuit tester.
    • If not as indicated in the table in illustration, replace the light switch.

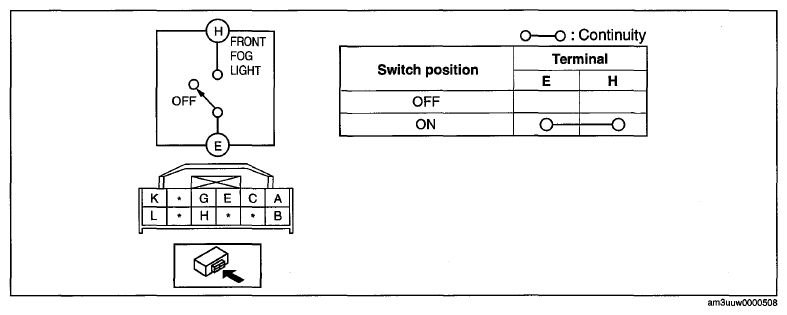

      Fig 1: Front Fog Light Switch Terminal Continuity Chart
      G06732198Courtesy of MAZDA MOTORS CORP.
