Ignition Coil Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L5] ).
  2. Disconnect the negative battery cable.
  3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

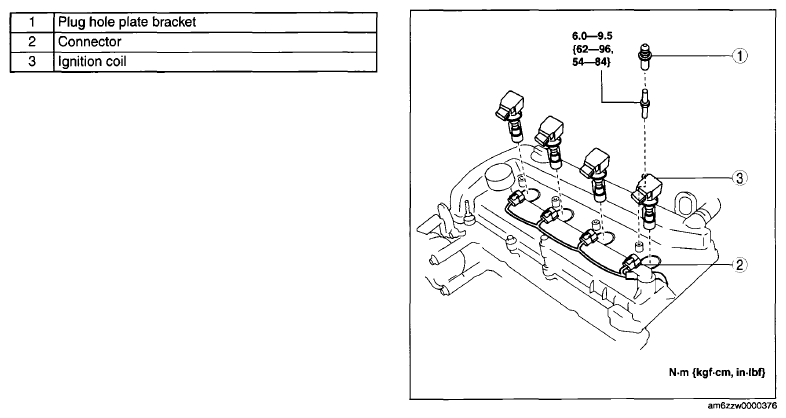

Fig 1: Ignition Coil, Connector And Plug Hole Plate Bracket With Torque Specifications
G07868378Courtesy of MAZDA MOTORS CORP.
