Selector Lever Component Connector End View

Fig 1: Selector Lever Component Connector End View
G06732785Courtesy of MAZDA MOTORS CORP.

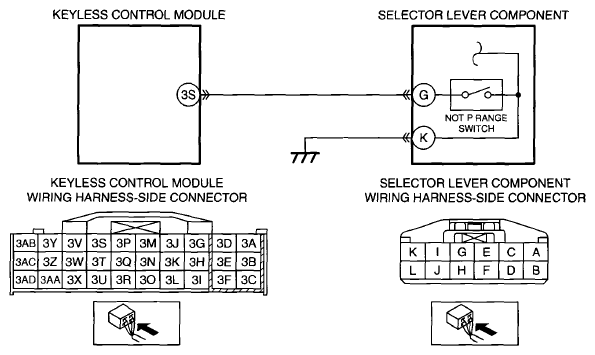

Fig 1: Selector Lever Component Connector End View
G07874863Courtesy of MAZDA MOTORS CORP.
