Driver Side Pre-Tensioner Seat Belt And SAS Control Module Connector End View

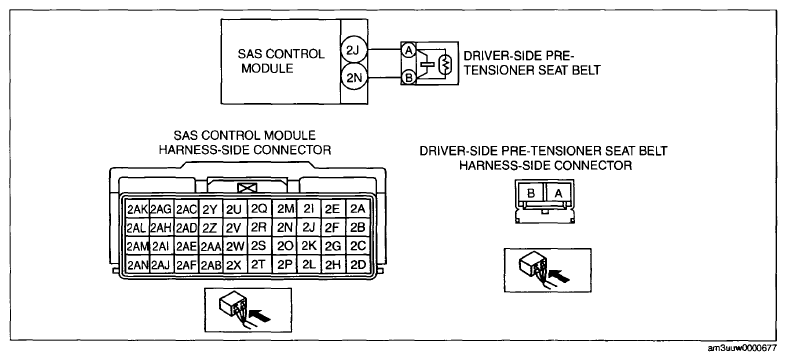

Fig 1: Driver Side Pre-Tensioner Seat Belt And SAS Control Module Connector End View

G07878695

Courtesy of MAZDA MOTORS CORP.
