Driver Side Air Bag Module Connector End View

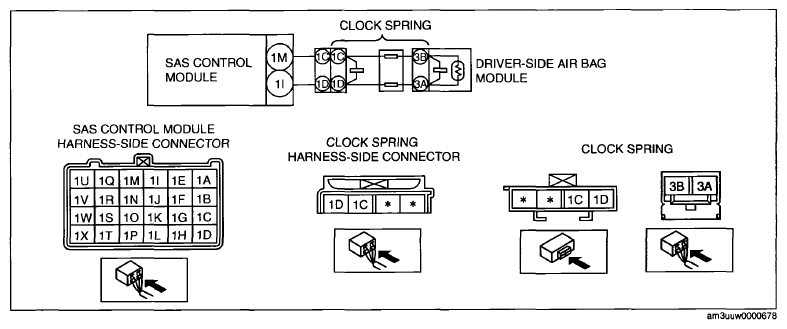

Fig 1: Driver Side Air Bag Module Connector End View

G07878698

Courtesy of MAZDA MOTORS CORP.
