Clock Spring Malfunction System Connector End View
Clock Spring Malfunction System Connector End View

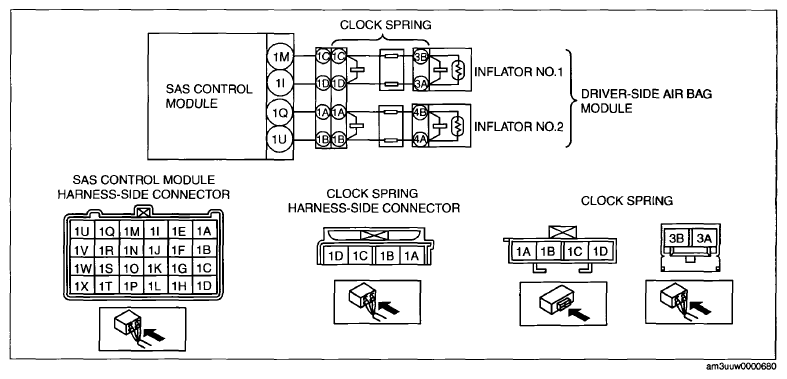

Fig 1: Clock Spring Malfunction System Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
