A/F Sensor Connector End View

Fig 1: A/F Sensor Connector End View
G07864482Courtesy of MAZDA MOTORS CORP.


Fig 1: A/F Sensor Connector End View
G07868531Courtesy of MAZDA MOTORS CORP.


Fig 1: A/F Sensor Connector End View
G07868478Courtesy of MAZDA MOTORS CORP.

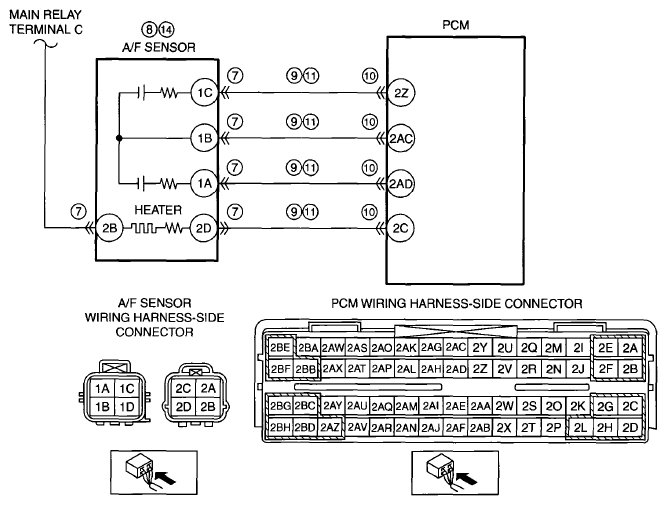

Fig 1: A/F Sensor Connector End View
G07864399Courtesy of MAZDA MOTORS CORP.
