Manual Transaxle Installation Note

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • Install the transaxle carefully, holding it steady. If the transaxle falls it could be damaged or cause injury.
  1. Set the transaxle on a jack and lift into place.
  2. Install the transaxle mounting bolts.
  3. Adjust the SST  (49 C017 5A0) so that the engine is located at the specified position.

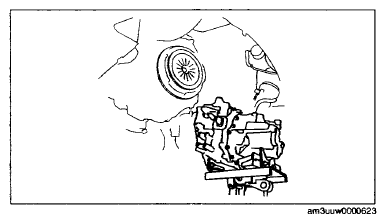

    Fig 1: Installing Transaxle Mounting Bolts
    G07874548Courtesy of MAZDA MOTORS CORP.
  4. Install the brake hose to the bracket as shown in the figure and install the clip.

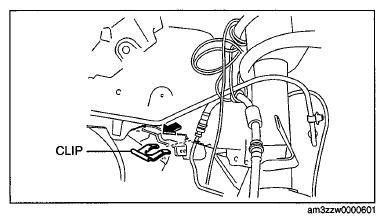

    Fig 2: Installing Brake Hose Clip
    G06732742Courtesy of MAZDA MOTORS CORP.
