Back-Up Light Switch Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable.
  2. Disconnect the back-up light switch connector.
  3. Remove the aerodynamic under cover No. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION ).
  4. Remove the back-up light switch with the gasket.
  5. Install a new gasket and the back-up light switch to the transaxle case.

    Tightening torque

    29-52 N.m {3.0-5.3 kgf.m, 22-38 ft.lbf}

  6. Install the aerodynamic under cover No. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION ).
  7. Connect the back-up light switch connector.
  8. Connect the negative battery cable.

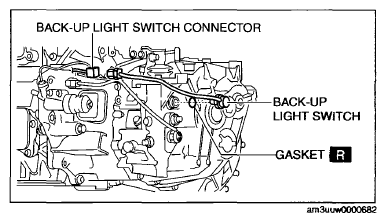

    Fig 1: Identifying Back-Up Light Switch And Connector
    G07874526Courtesy of MAZDA MOTORS CORP.
