Audio Unit Disassembly/Assembly

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When disassembling the audio unit, it could get scratched if it is placed directly on the ground. When disassembling the audio unit, spread a soft cloth underneath to perform the work.
  1. Disassemble in the order indicated in the table in illustration.
  2. Assemble in the reverse order of disassembly.

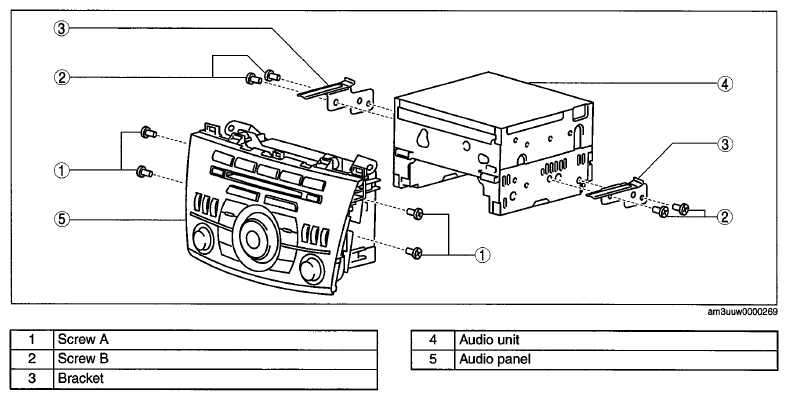

    Fig 1: Identifying Audio Unit, Bracket And Screws
    G06732288Courtesy of MAZDA MOTORS CORP.
