Caliper (Rear) Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

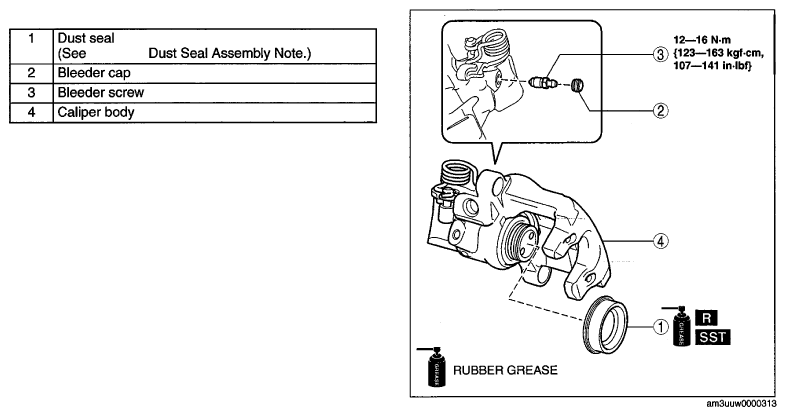

    Fig 1: Exploded View Of Caliper (Rear)
    G06731103Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
