Brake Switch Installation Note
WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the brake pedal. (See BRAKE PEDAL INSPECTION .)

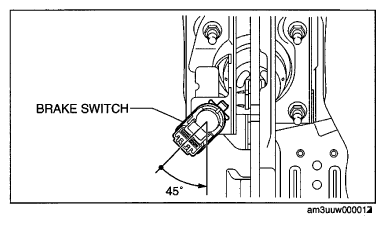

- With the brake pedal fully released, insert a new brake switch into the installation hole on the brake pedal.
- Secure the brake switch by turning it counterclockwise 45° .
