3 i Touring, 2.0 F, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Symptom Troubleshooting [Keyless Entry System]
>>
Keyless Entry System Wiring Diagram [Keyless Entry System]
Keyless Entry System Wiring Diagram [Keyless Entry System]

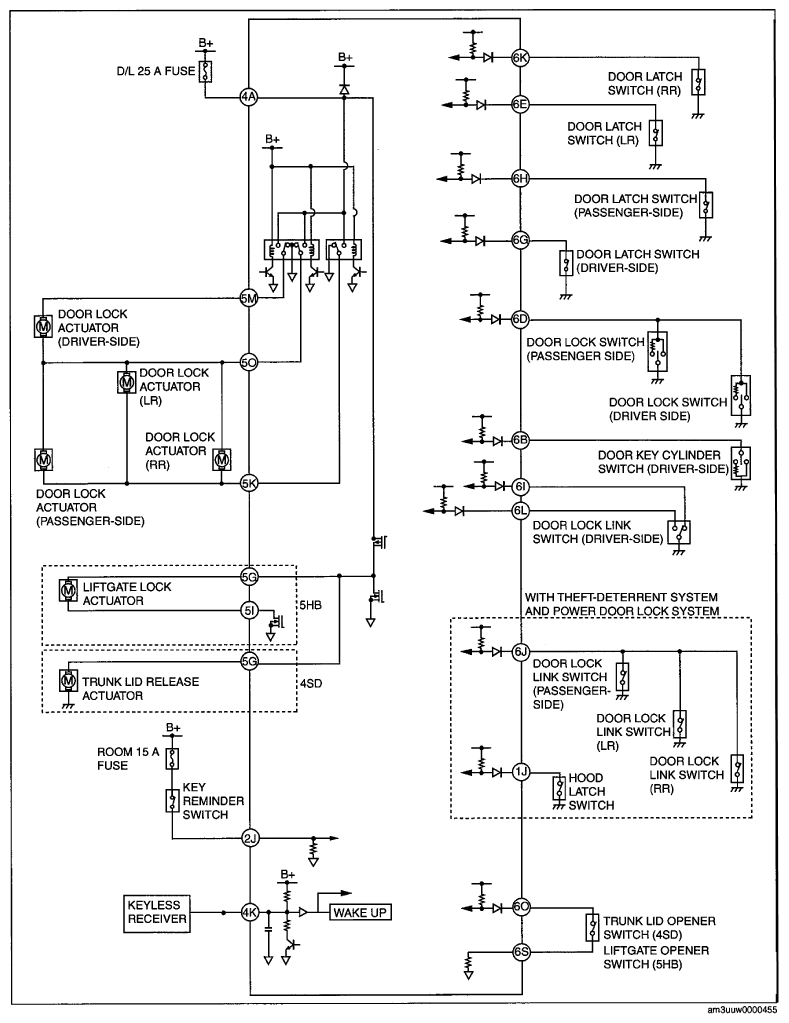

Fig 1: Keyless Entry System Wiring Diagram (Keyless Entry System)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
